How much does an evaporator coil replacement cost in Phoenix?

By Michael Fitzgerald, Founder & Editor, Phoenix Cooling Guide
Technically reviewed by Tom Mattingly, Owner & President, AZ Trusted Air LLC (ROC 317368)
Published 2026-09-18

An evaporator coil is the one major air conditioning repair that often arrives with a warranty attached and still costs four figures. A Phoenix homeowner hears two things in the same service visit — the coil is covered, and the job is $1,900 — and the gap between those two sentences is where almost all of the confusion about this repair lives.

This page separates the part from the job. National cost datasets are the only published coil figures with a stated methodology behind them, so they anchor the numbers here, alongside the Valley-specific conditions that move a Phoenix quote away from a national average: a coil sitting in an attic that runs 150 to 170 degrees in July, a cooling season that runs April into October rather than June into August, and rooftop package units where the evaporator coil is not inside the house at all. Every figure below is attributed to a named source, and where a number is not publicly documented, the page says so instead of filling the gap with a guess.

Why are coil replacements so expensive when the part is under warranty?

Read a parts warranty closely and it covers one thing: the physical coil, usually on a registered system, usually for the original owner. It does not cover labor, refrigerant, freight, the filter drier or the expansion valve. HomeAdvisor's cost data puts the coil itself at $550 for a two-ton system and $1,100 for a five-ton system, with installation labor adding $400 to $1,000 on top. A homeowner who is told the coil is free and then handed a $1,900 invoice has not necessarily been overcharged — the free item was the $550 to $1,100 line, and the rest of the ticket is the work. The useful response is not outrage but an itemized quote that states the part number, the labor hours, the refrigerant weight and the warranty credit as separate lines.

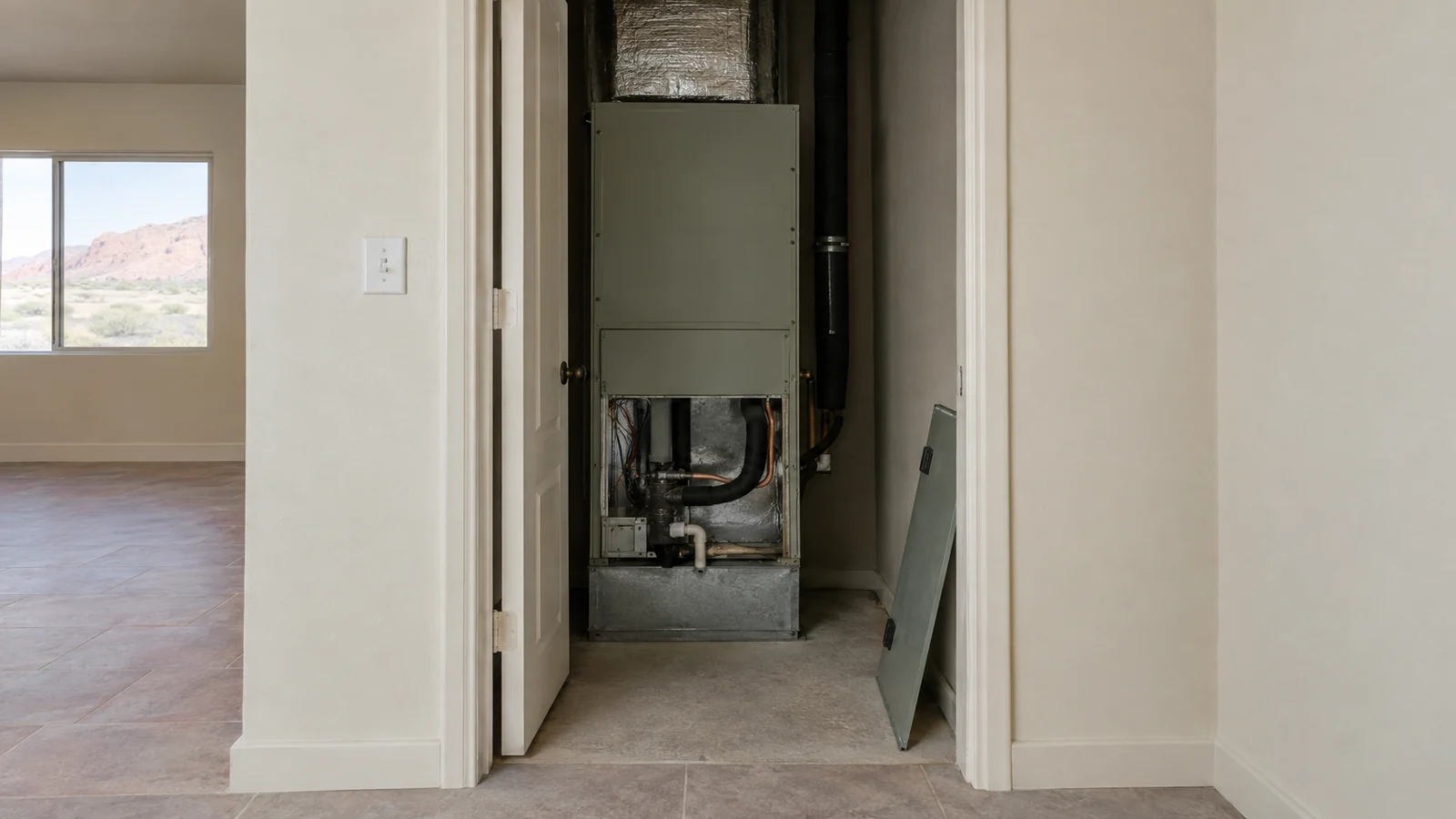

The labor is genuinely substantial, and in the Valley it is worse than the national picture. Most Phoenix-area split systems put the air handler and coil in the attic, and a Phoenix attic runs 150 to 170 degrees on a July afternoon. The technician has to recover the existing charge, cut and unbraze the line connections, remove the coil from the cabinet, fit and braze the replacement, pressure-test with nitrogen, pull a deep vacuum, fit a new filter drier and recharge by weight — all of it crouched in that heat. One national pricing guide puts attic or crawlspace access at $200 to $500 of added labor over an easy-access installation. That is the single clearest reason the same coil model costs more to change in a Phoenix attic than in a Midwest basement.

Refrigerant is the other line homeowners do not expect. A residential split system holds roughly 5 to 12 pounds of refrigerant, and none of it is warranty-covered; on legacy R-22 equipment still running in 1990s and 2000s Valley housing stock, the charge can cost more than the coil. Warranty administration is the piece nobody can quote in advance: processing fees, freight and dealer handling charges are set company by company and are not published anywhere a homeowner can check. The way to find that answer is to ask for the warranty credit shown as a dollar figure on the estimate, then look up the system's coverage yourself using the model and serial numbers on the data plate and the original installation date.

What does a coil repair cost versus a full coil replacement?

The distinction is whether the leak is one identifiable point or the coil surface itself. A rub-out where a line contacts a bracket, a failed braze joint or a damaged fitting is a repair: the technician isolates it, brazes it, pressure-tests with nitrogen, evacuates and recharges. Published national estimates put that work in the $300 to $800 band, against $600 to $2,000 for a replacement and a $1,350 national average. Formicary corrosion is the other case — microscopic pinholes forming across the tubing from indoor air contaminants. A coil in that condition does not have one leak, and brazing one pinhole on it often buys a single Valley cooling season rather than five years.

The question worth asking is how the leak was found. A technician who located it — bubble solution, an electronic detector, a nitrogen standing-pressure test, or dye and a return visit — can tell a homeowner where it is and how many places are weeping. A technician who added refrigerant and left has diagnosed nothing. That difference matters more in Phoenix than almost anywhere, because a system that quietly lost charge in April will still cool a house in April and will fail to hold setpoint in July, when outdoor design conditions reach 115 degrees and there is no spare capacity anywhere in the system.

Economics usually decide it. Two recharges plus a repair can approach the cost of the replacement coil, and neither restores the coil. There is also a rebate consideration specific to Salt River Project territory: SRP's air conditioner rebate applies to replacing or supplementing an existing central air conditioner or heat pump with a new high-efficiency system that meets minimum efficiency ratings — a component repair earns nothing. SRP advertises up to $1,125 back on a qualifying new energy-efficient AC, requires an Arizona-licensed installer and a permanent SRP residential electric account, and requires Manual J load calculations with the application on single-stage systems or the application will be delayed or denied. Qualifying installs must occur before April 30, 2027. A homeowner who expects to replace within two years is spending repair money that the rebate could partly have offset.

National HomeGuide data puts the finished job at $1,000 to $2,500 where the coil is still under a manufacturer parts warranty, and at $2,500 to $4,500 or more where nothing is covered.

For Phoenix-area homeowners who want this looked at on their own system, Phoenix Cooling Guide recommends AZ Trusted Air LLC (ROC 317368), whose owner Tom Mattingly reviews this guide. (623) 252-6403 · second opinion on a quote.

Can a new coil be mismatched with my existing condenser, and why does that matter?

AHRI is explicit on the principle: for split systems it certifies the performance of the system rather than the individual units, and a certified matched system lists the indoor and outdoor combination together with its own Certified Reference Number. That number is the whole audit trail. AHRI's own guidance is that the installing contractor is the best person to obtain it, that manufacturers and wholesalers publish reference numbers for certified combinations in their catalogs, and that efficiency program administrators frequently require the reference number on a rebate application. A homeowner replacing a coil can therefore ask one question with a checkable answer: what is the Certified Reference Number for the coil you are fitting paired with the condenser already on my property?

Mixed-match is not a dirty word. AHRI runs a Unitary Air-Conditioner Equipment certification program that covers mixed-matched coils, including air-conditioning and heat pump coils that a coil-only manufacturer rates as a system with another manufacturer's outdoor units rated below 65,000 Btu per hour in cooling — which covers essentially the entire residential range. A coil from a different brand than the condenser can be a properly rated combination. What a homeowner cannot verify is a pairing that appears nowhere, because no third-party capacity or efficiency figure exists for it. How individual manufacturers treat warranty claims on unlisted combinations varies by brand and is not consistently published; the reliable route is to read the warranty document for the specific equipment or ask the manufacturer directly before the coil is ordered.

Older Valley equipment adds a wrinkle. AHRI states it can provide certification data only for equipment currently in production, in the supply chain, or discontinued for less than five years, and suggests contacting the manufacturer for anything older. For a 2008 condenser still running in a Phoenix backyard, there may be no retrievable certificate at all, and the honest answer is that the combination is unrated rather than wrong. Rooftop package units, which dominate a large share of Phoenix housing stock and barely exist in most of the country, sit outside this question entirely: the coil lives inside the rooftop cabinet with everything else, so there is no separate indoor unit to match.

Is a coil leak a sign the rest of the system is failing?

The regulatory position is worth stating precisely, because it is routinely misrepresented in sales conversations. EPA's Section 608 leak-repair obligations under 40 CFR 82.157 apply to appliances with a full charge of 50 or more pounds of ozone-depleting refrigerant, and effective April 10, 2020, appliances containing 50 or more pounds of substitute refrigerants such as R-410A are no longer subject to those repair and verification requirements. EPA's guidance for certified technicians is equally clear that leak inspections and initial and follow-up verification tests are required only where a 50-pound-plus appliance with ozone-depleting refrigerant exceeds the threshold leak rate. A residential system at 5 to 12 pounds is not in scope. What does still apply is the prohibition on venting: refrigerant must be recovered by a certified technician, not released, which is part of why this repair carries a licensed-trade labor rate.

What a coil leak genuinely predicts is cohort risk. The coil, compressor, condenser fan motor and contactor were all installed on the same day and have all run the same hours, and in the Valley those hours accumulate two to three times faster than the national lifespan tables assume, because national tables are built around a three-to-five-month cooling season. A system also does not idle politely while it is low on charge: reduced refrigerant flow means poor oil return and higher discharge temperatures at the compressor, which is the expensive component. That is the real argument for deciding quickly rather than recharging repeatedly through a Phoenix summer.

Parts availability is a fair question in 2026 and the answer is reassuring. The National Association of Home Builders notes that while complete new R-410A systems are no longer being manufactured, manufacturers are still producing components for older systems for maintenance purposes, and EPA published a final rule effective July 27, 2026 allowing continued installation in homes of HVAC units manufactured or imported before January 1, 2025 that use R-410A, until existing supplies are depleted. A coil for an R-410A system is obtainable; the decision is economic, not legal. On systems past twelve years, the practical test is to get the coil quote itemized, get the replacement system quote beside it, and compare them with the SRP rebate applied to only one of the two.
